Tectura Textile Facade

The hall and facade cladding for industrial halls

The textile facades are designed for closing large openings on open-air halls or cold storage halls. The hall claddings protect the warehouse contents from prying eyes and the effects of the weather.

The windbreak nets are made to measure and delivered ready for installation. A substructure, as required for trapezoidal sheets, is not needed. Thanks to the individual customisation of each textile facade, a variety of shapes and different fabrics and tarpaulins can be used. Different windbreak effects can be achieved with the diverse types of fabric. Fabrics with high permeability are more suitable for timber stores, for example. Tectura offers the right fabric for every type of cold storage hall - when visual and weather protection with simultaneous use of daylight is important.

The tensioning version is fixed directly to the building structure with aluminium keder rails and ratchets. This ensures permanent and crease-free alignment and tensioning. Thanks to the flexible system structure, the textile facades can be easily retrofitted. In the event of structural changes, it is possible to react flexibly, e.g. in the case of hall extensions. The smooth and fast assembly ensures a quick completion of your building project.

Check Icon

Individual manufacture to size and shape

Check Icon

Visual and weather protection with simultaneous use of daylight

Product advantages

  • Individual manufacture to size and shape
  • Visual and weather protection with simultaneous use of daylight
  • Low-cost and low-maintenance hall facade
  • Flexibly adaptable to structural changes
  • Durable and wrinkle-free cladding
  • Uncomplicated and quick assembly

Technical data

Application
  • Indoor
  • Outdoor
SafetyPermanently stable alignment due to aluminium keder rails and tensioning ratchets
FasteningDirectly on the building structure without substructure
Material
  • PVC-coated PES fabric
  • Windbreak mesh for fresh air ventilation
  • Various colours available
Construction
  • Flexible system construction
  • Easy to dismantle in case of any structural changes
  • Permanent and crease-free alignment



Design

RECTANGLE
Dessin montrant les pignons rectangulaires de la façade textile Tectura
TRIANGULAR PEDIMENT
Dessin montrant les pignons triangulaires de la façade textile Tectura
TRAPEZOIDAL GABLE
Dessin avec les pignons trapézoïdaux de la façade textile Tectura
POLYGONAL GABLE (SYMMETRICAL)
Dessin montrant les pignons polygonaux de la façade textile Tectura
POLYGONAL GABLES (ASYMMETRICAL)
Dessin montrant les polygones asymétriques de la façade textile Tectura
Icon Sprechblase

Are you interested in textile facades?

Send us an enquiry and we will calculate the right facade cladding solution for you. Are you unsure which Tectura solution is best suited to your application? Please contact our sales department, we will be happy to plan special solutions together with you!

Request Facade now

Gebäude im Störer

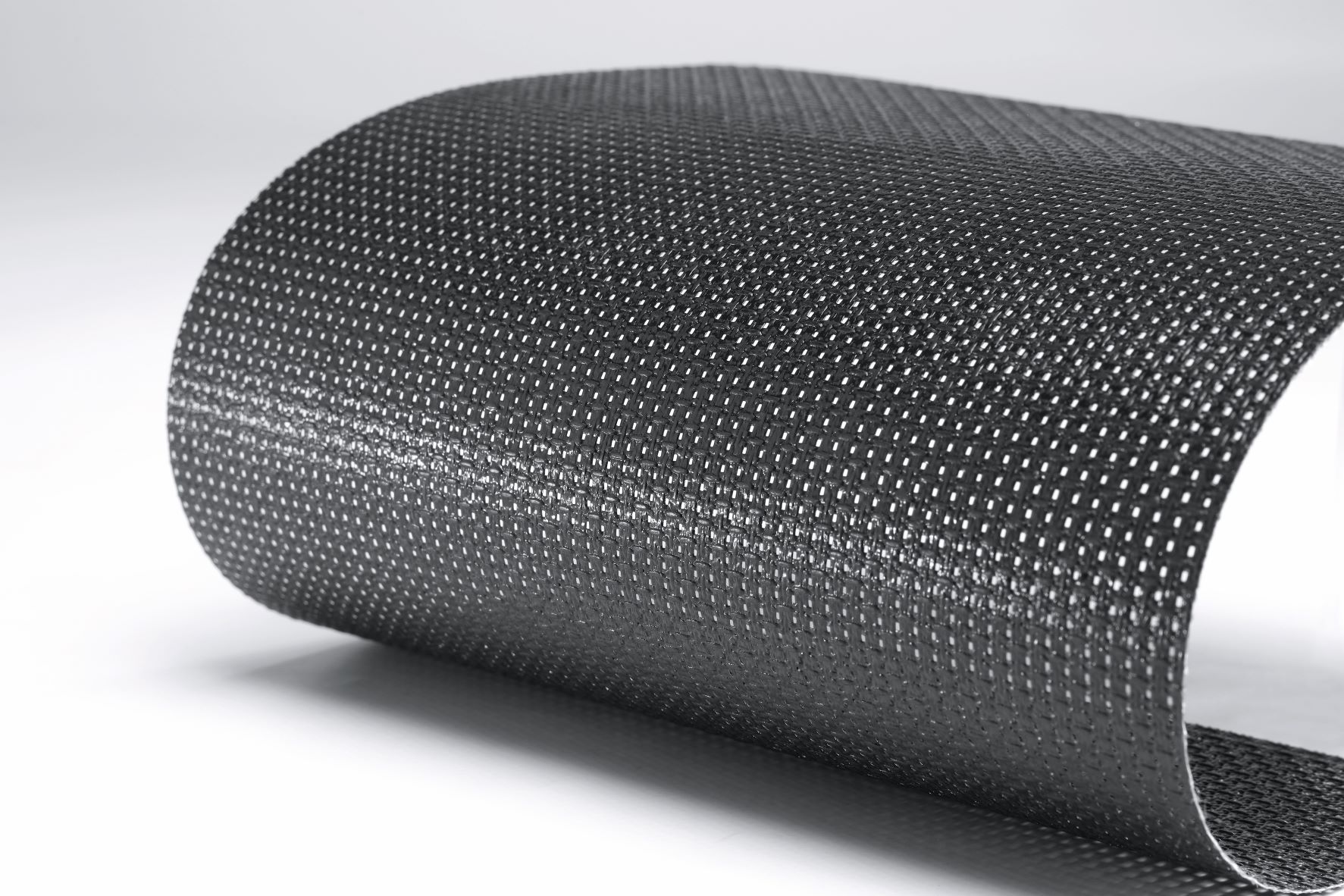

Material overview

Net PES-PVC 73 52.144
Net PES-PVC 40/40
Net PES-PVC 92 60/60-1
Tarpaulin PES-PVC 6.5

Technical data


MaterialPES mesh fabric with PVC coating

PES mesh fabric with PVC coating on both sides

Mass per unit areaCa. 250 g/m²Ca. 360 g/m2Ca. 450 g/m2Ca. 650 g/m2
Wind brakingCa. 90 %Ca. 40 %Ca. 94 %
Colours
  • couleur noire Black
  • couleur grise Grey
  • Couleur vert foncé Dark green
  • couleur noireBlack
  • Couleur vert foncéDark green
  • couleur noire Black
  • Couleur beige Beige
  • couleur grise Grey
  • Couleur vert foncé Dark green
  • Couleur marron Brown
  • couleur noire Black
  • Couleur beige Beige
  • couleur grise Grey
  • Couleur vert foncé Dark green
  • Couleur blanche White



Further information

you will find here
